Chalcogenide Glass

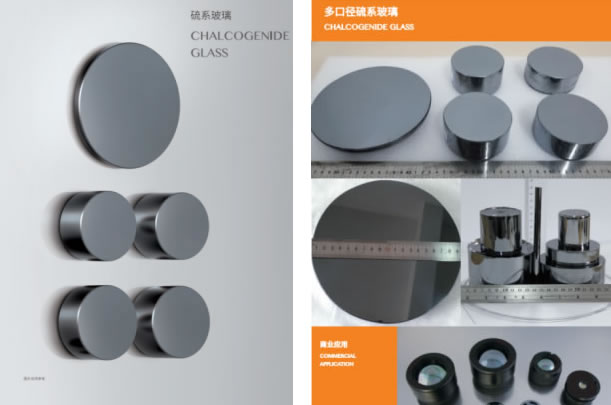

Chalcogenide glass is a new type of infrared lens material. Compared with traditional infrared Ge single crystal materials, chalcogenide glass has advantages such as lower raw material cost (less than one-third the cost of Ge lenses), higher processing efficiency (suitable for precision molding), a lower thermo-optic coefficient of refractive index, and the ability to operate within a wide temperature range from -40°C to 70°C.

1. Internationally advanced preparation technology: won the second prize of the National Technological Invention Award in 2014

2. Unique and innovative melting process: double-furnace full distillation homogenization swing melting (6 authorized invention patents)

3. Strict product quality control: passed the national military standard (GJB-9001b) quality certification

4. Industry-leading product testing: 12 authorized invention patents

5. Customizable production: develop and produce new chalcogenide glass according to customer needs

6. Annual output and product specifications: 7-8 tons per year, diameter ∅10-250mm

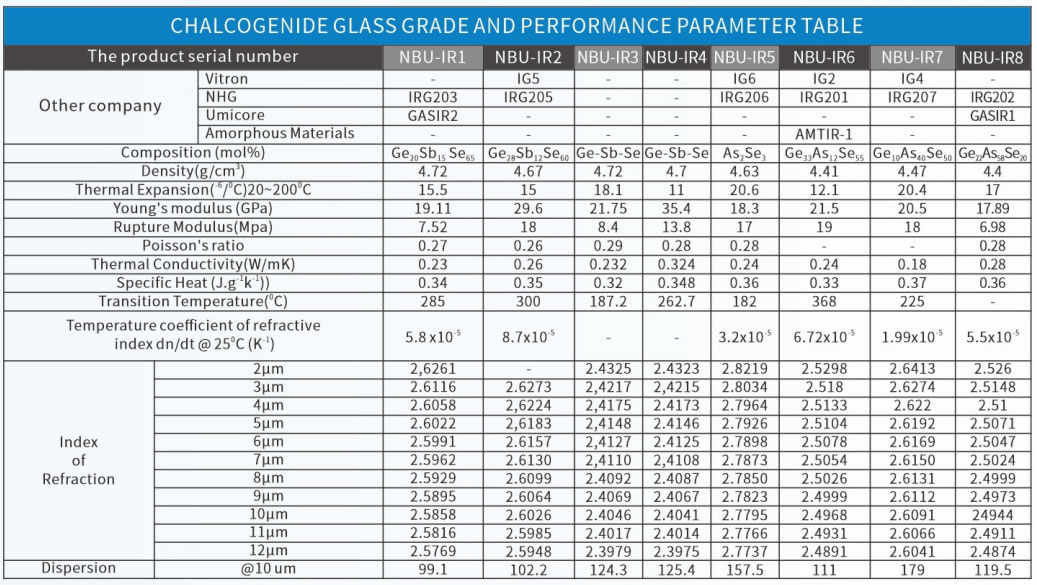

Refractive index homogeneity of the glass: Δn ±2×10⁻⁴

Batch refractive index homogeneity: Δn ±4×10⁻⁴
